TR100 (ULTRA PREMIUM SHALLOW TREAD TRAILER-POSITION TIRE)
Ultra-premium shallow tread trailer-position tire

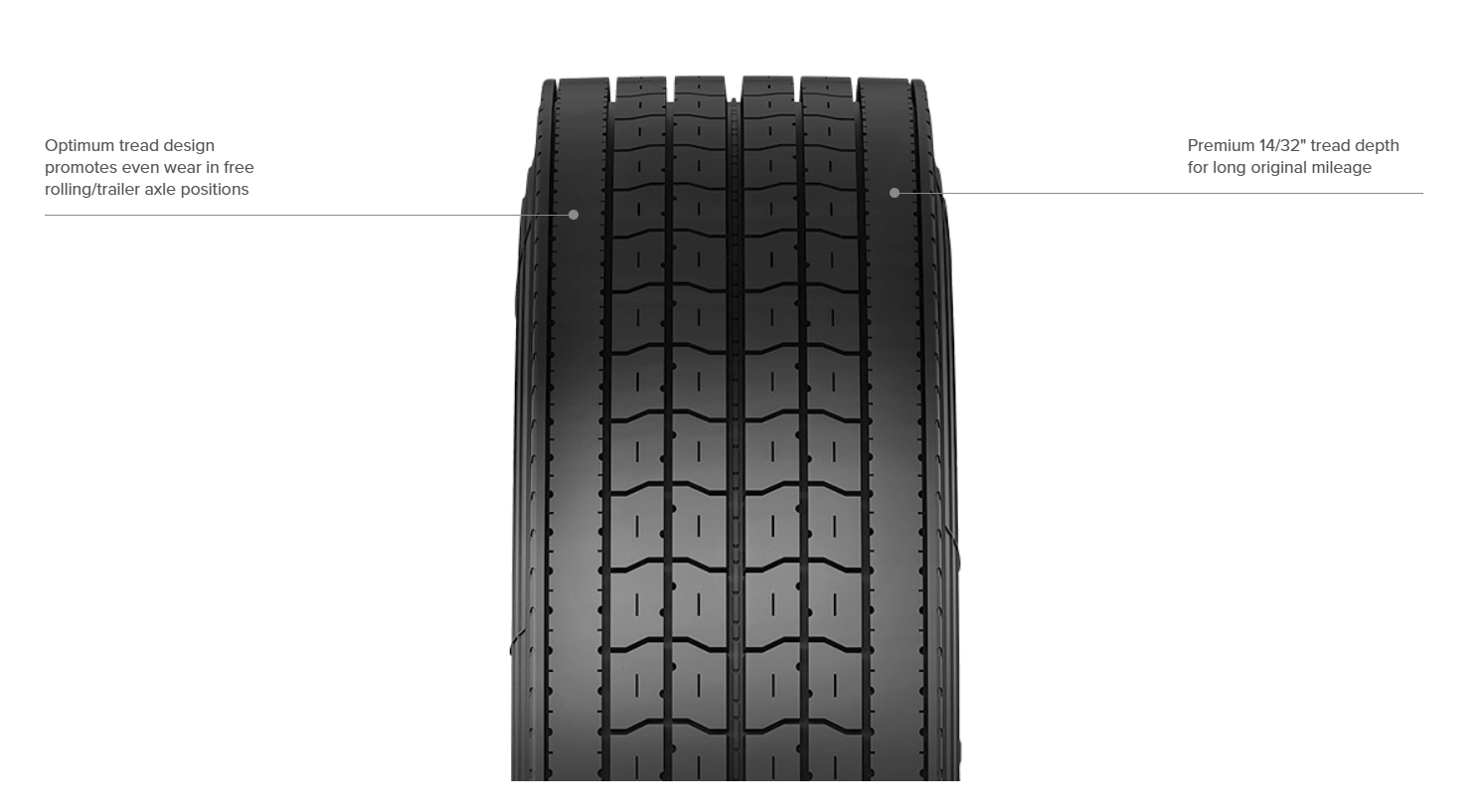

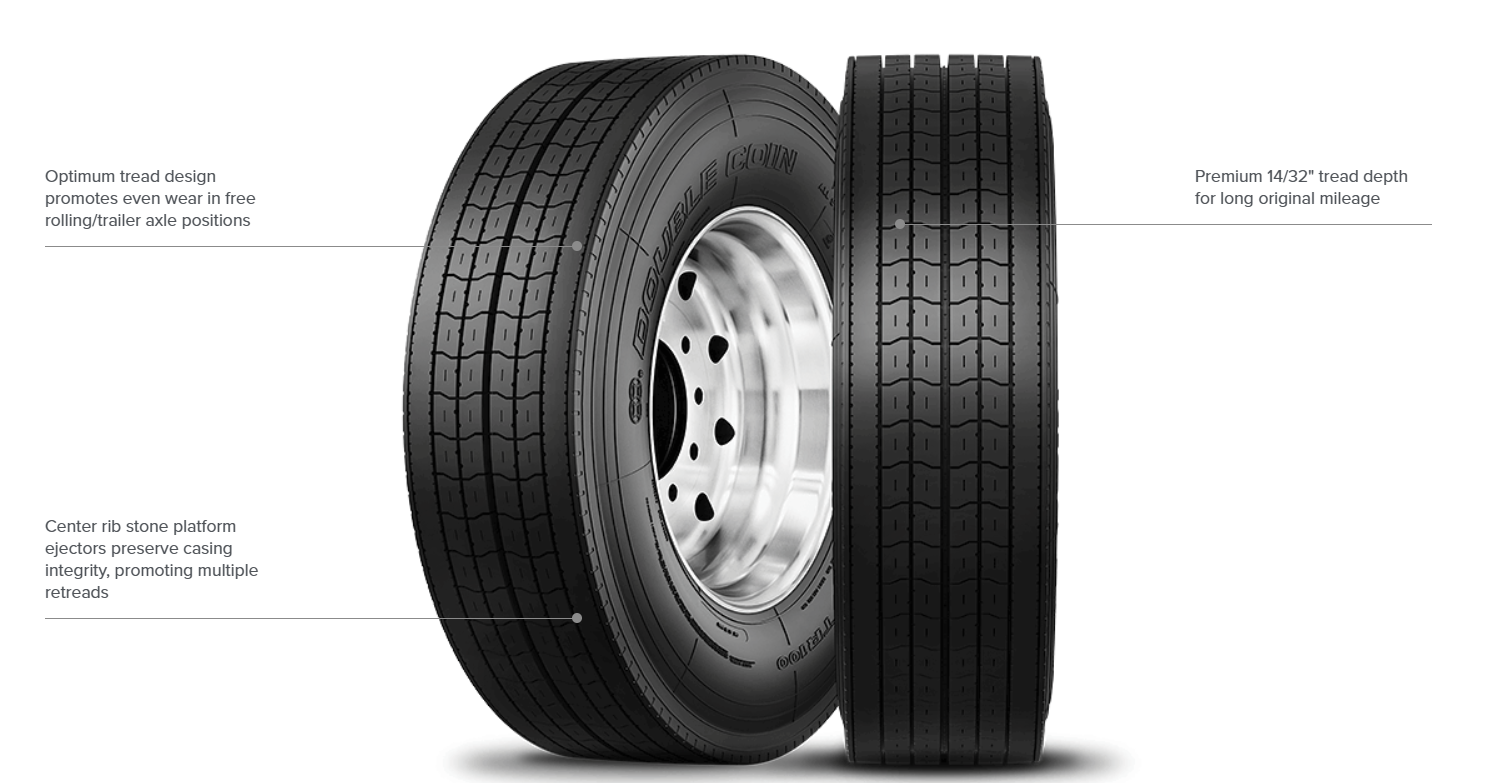

The Double Coin TR100 is a shallow tread trailer position tire designed for all types of trailer applications. Built to provide superior tread life, the TR100 trailer tire features multiple siping and wide shoulders to prevent irregular wear that occurs in free rolling positions.
TR100 Highlights
TR100 Specifications
| Product Code | Size | Ply Rating | Load Range | Load Index | Speed Symbol | Overall Diameter (inch) | Section Width (inch) | Tread Depth (32nds) | RIM | Single Max Load/Pressure | Dual Max Load/Pressure | Static Load Radius | Revs per Mile | Weight | Tire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1133381255 | 11R22.5 | 14 | G | 144/142 | M | 41.0 | 10.9 | 14 | 8.25 | 6175lb/105psi | 5840lb/105psi | 19.5 | 500 | 113lb/51kg | TL |
| 1133381256 | 11R22.5 | 16 | H | 148/145 | M | 41.0 | 10.9 | 14 | 8.25 | 6940lb/123psi | 6390lb/123psi | 19.5 | 500 | 117lb/53kg | TL |
| 1133389255 | 295/75R22.5 | 14 | G | 144/141 | M | 40.2 | 11.7 | 14 | 9.00 | 6175lb/110psi | 5675lb/110psi | 18.9 | 510 | 114lb/51kg | TL |
| 1133381455 | 11R24.5 | 14 | G | 146/143 | L | 42.9 | 10.9 | 14 | 8.25 | 6610lb/105psi | 6005lb/105psi | 20.8 | 476 | 124lb/56kg | TL |
| 1133381456 | 11R24.5 | 16 | H | 149/146 | L | 42.9 | 10.9 | 14 | 8.25 | 7160lb/120psi | 6610lb/120psi | 20.8 | 476 | 126lb/57kg | TL |
| 1133388455 | 285/75R24.5 | 14 | G | 144/141 | L | 41.1 | 11.0 | 14 | 8.25 | 6175lb/110psi | 5675lb/110psi | 19.3 | 505 | 117lb/53kg | TL |
