RLB490 (LOW PROFILE DRIVE-POSITION MULTI-USE TIRE)
Low profile drive-position multi-use tire

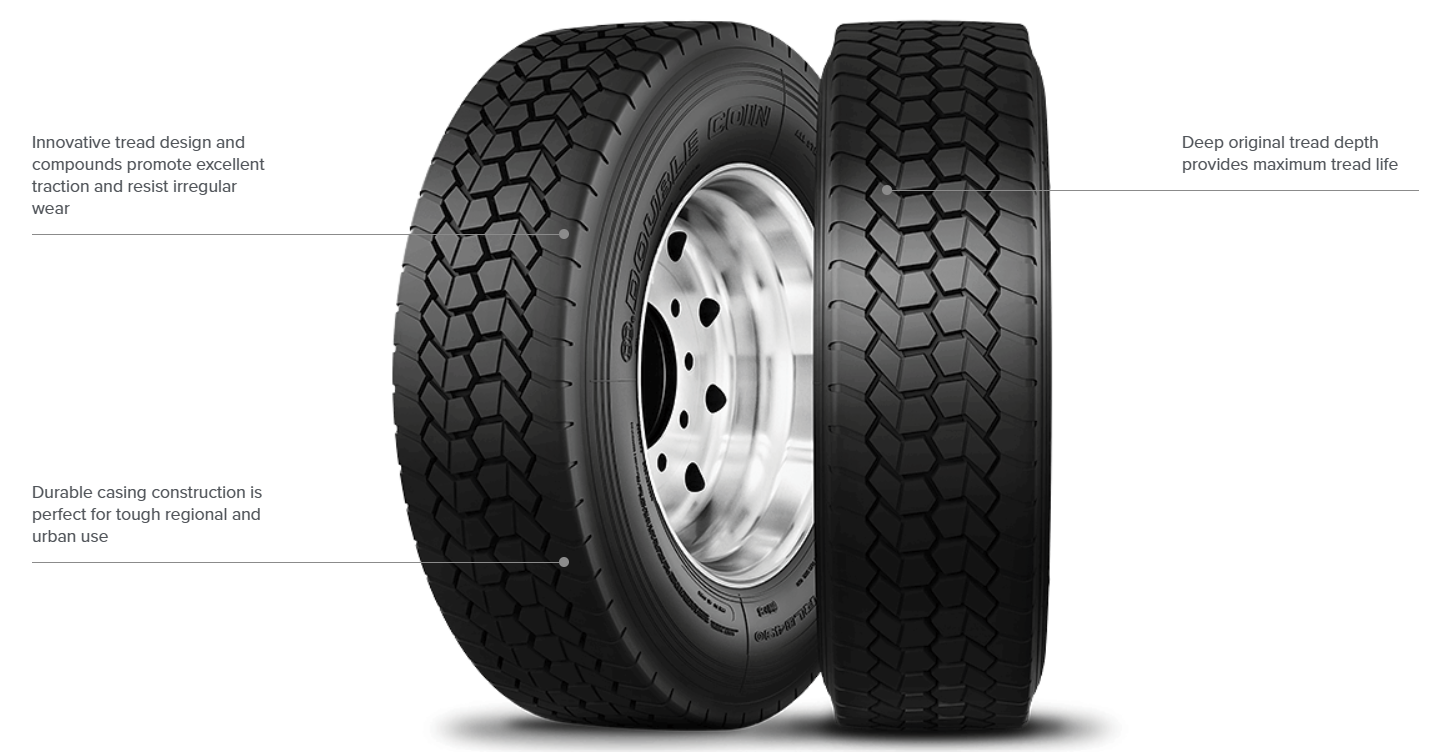

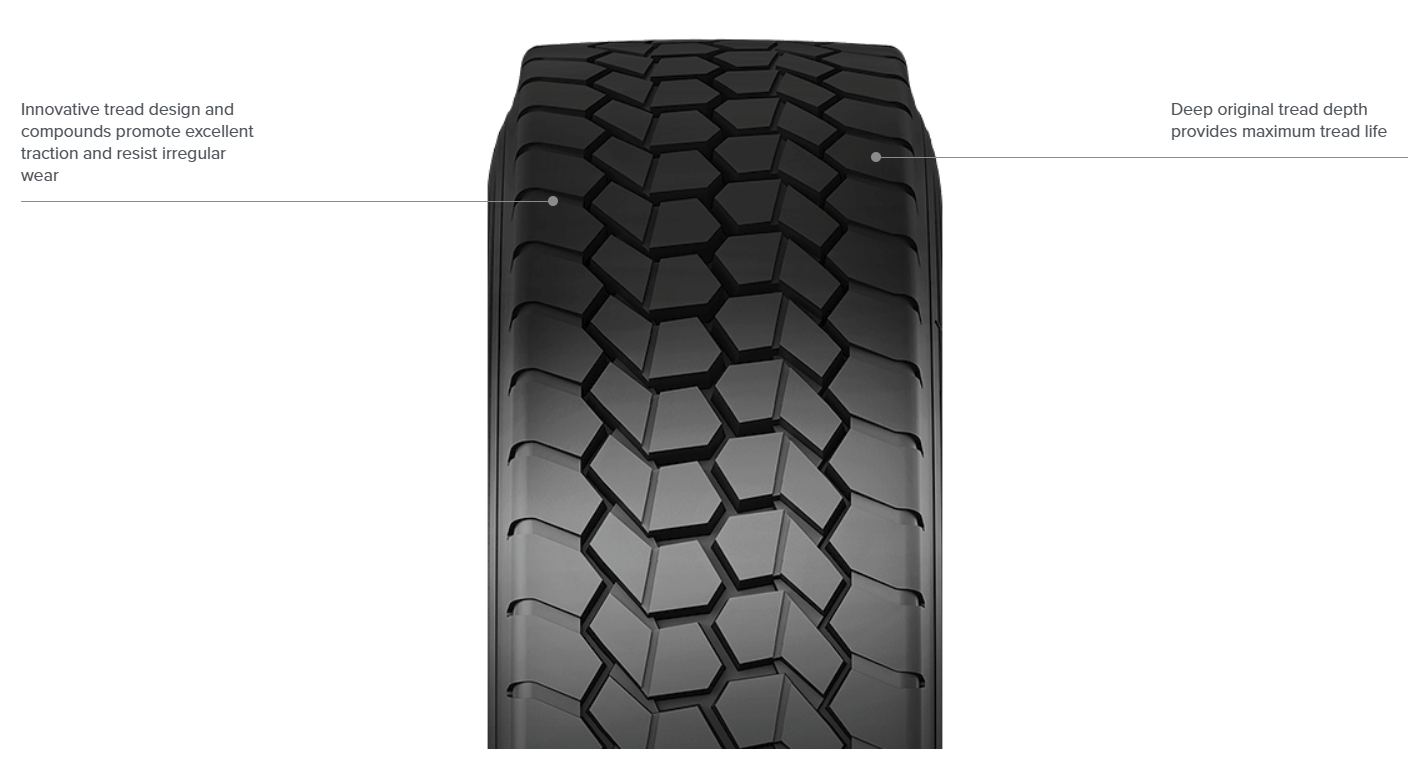

The premium Double Coin RLB490 is a durable low profile drive-position multi-use commercial truck tire. Its unique tread design delivers outstanding traction and even wear, and its sidewall ribs are designed to resist curb damage and abrasion.
RLB490 Highlights
RLB490 Specifications
| Product Code | Size | Ply Rating | Load Range | Load Index | Speed Symbol | Overall Diameter (inch) | Section Width (inch) | Tread Depth (32nds) | RIM | Single Max Load/Pressure | Dual Max Load/Pressure | Static Load Radius | Revs per Mile | Weight | Tire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1134902796 | 225/70R19.5 | 14 | G | 128/126 | N | 32.5 | 8.8 | 19 | 6.75 | 3970lb/110psi | 3750lb/110psi | 15.8 | 635 | 71lb/32kg | TL |
| 1134904796 | 245/70R19.5 | 16 | H | 136/134 | K | 33.5 | 9.6 | 19 | 7.50 | 4940lb/120psi | 4675lb/120psi | 15.2 | 617 | 84lb/38kg | TL |
| 1134906796 | 265/70R19.5 | 16 | H | 143/141 | K | 34.6 | 10.0 | 22 | 7.50 | 6010lb/125psi | 5670lb/125psi | 16.4 | 615 | 93lb/42kg | TL |
| 1134905726 | 255/70R22.5 | 16 | H | 140/137 | L | 37.0 | 10.0 | 22 | 7.50 | 5510lb/120psi | 5070lb/120psi | 17.0 | 597 | 96lb/43kg | TL |
| 1134907726 | 275/70R22.5 | 16 | H | 148/145 | K | 38.1 | 11.0 | 22 | 8.25 | 6930lb/131psi | 6380lb/131psi | 17.7 | 543 | 112lb/51kg | TL |
