IM105 (FUEL EFFICIENT CONTAINER CHASSIS RADIAL TIRE)
Fuel efficient intermodal container chassis tire

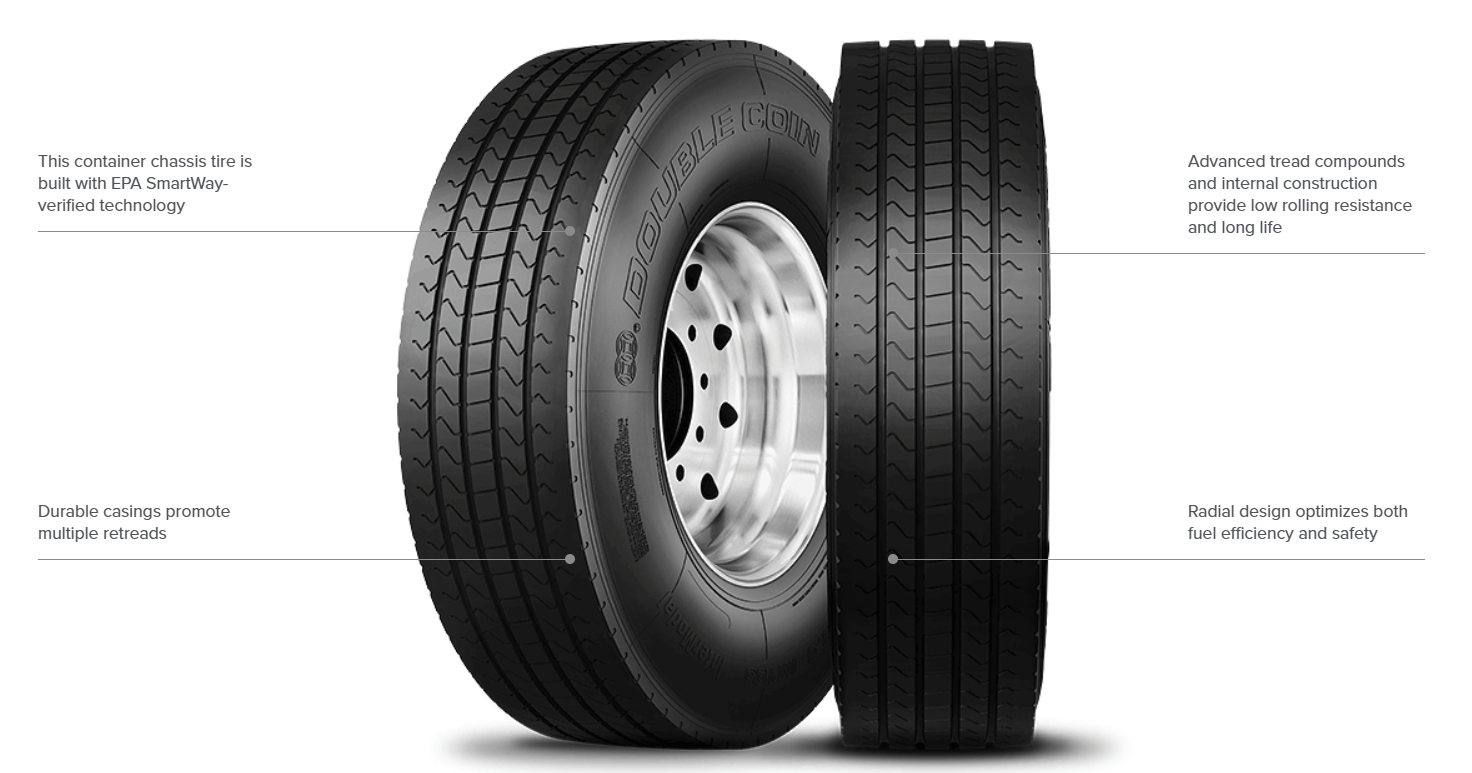

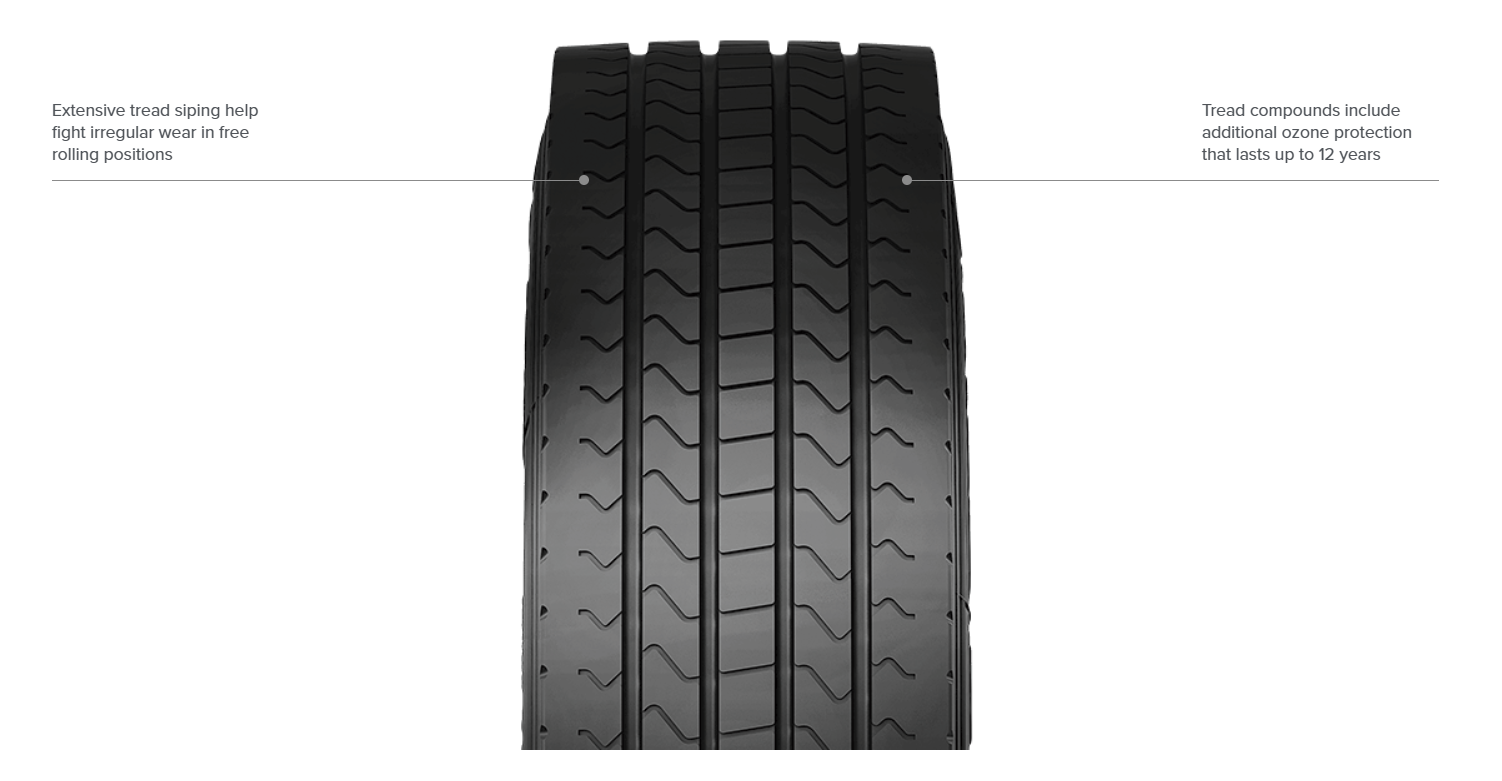

The Double Coin IM105 container chassis tire is an EPA SmartWay®-verified, low rolling resistance radial tire built for intermodal applications. It is also engineered with additional ozone protection that lasts up to 12 years.
IM105 Highlights
IM105 Specifications
| Product Code | Size | Ply Rating | Load Range | Load Index | Speed Symbol | Overall Diameter (inch) | Section Width (inch) | Tread Depth (32nds) | RIM | Single Max Load/Pressure | Dual Max Load/Pressure | Static Load Radius | Revs per Mile | Weight | Tire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1133831255 | 11R22.5 | 14PR (LRG) | G | 144/142 | M | 41.1 | 11.2 | 12 | 8.25 | 6175lb/105psi | 5840lb/105psi | 19.3 | 505 | 109lb/49kg | TL |
| 1133839255 | 295/75R22.5 | 14PR (LRG) | G | 144/141 | M | 40.0 | 11.7 | 12 | 8.25 | 6175lb/110psi | 5675lb/110psi | 18.7 | 520 | 108lb/49kg | TL |
